Daryl's Beemer

Daryl would like to take the opportunity to thank all the companies that supplied parts for this project:

bulletAutofashion for all styling parts - 08707 518518 or www.autofashion.co.uk
bulletLenso for the Wheels - S7's, 18 inch
bulletPirelli for the tyres - 215/35/18
bulletPhil Chapman for the ICE install - 08707518518 or www.autofashion.co.uk
bullet





This BMW is an E30 323i and belongs to Autofashion General Manager Daryl. Since its worked on between Customers cars, progress has not been all that swift, but it will be pretty special when finished although the 18's that were current when the project was started are now looking like yesterdays size, now that customers are asking us to fit 20's to most cars.

The car will have the full Gordons kit and special paintjob, already has a fully rebuilt engine, and leather interior, and the bulk of the ICE install, although none of the equipment.

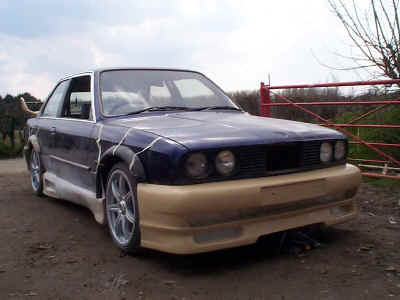

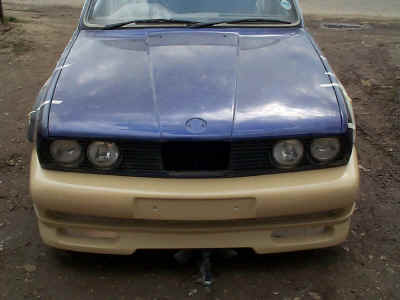

Gordons kit being trial fitted Gordons kit is trial fitted

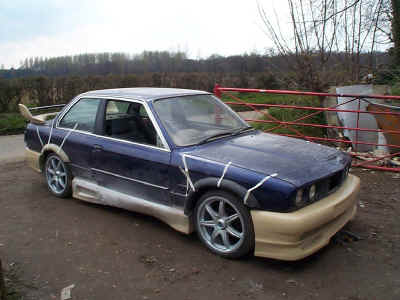

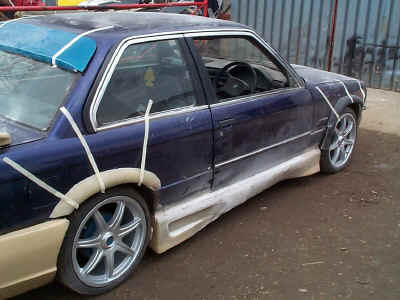

Gordons kit from Autofashion is trial fitted Gordons kit is trial fitted to E30

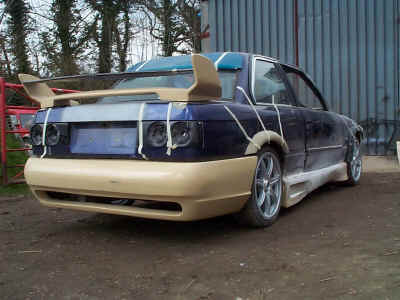

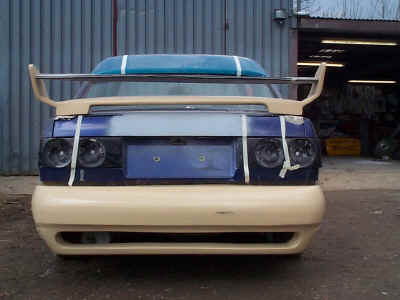

Full Gordons kit with twin taillights is trial fitted Gordons kit only available from Autofashion

The first stage with any of these projects is to trial fit the kit. Here you see the items all taped onto the car to establish where each item must go. Once happy you can drill the mounting holes, make any final adjustments and then fit the items for real.

On this particular car the arches and skirts will be seamlessly bonded for a better appearance, and better rust proofing, with all other items being removable.

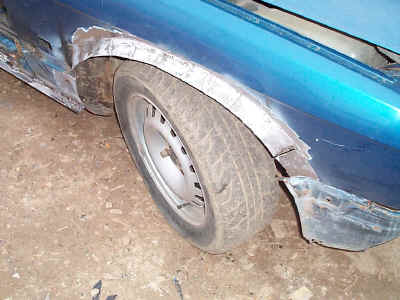

Front arch and skirt ready to laminate

The first actual job is to strip the paint from the panel, and then re-profile the edge of the wing for the bigger wheels and arches.

A flat bar is then welded along the sill for the skirt to sit on when bonded.

Once the metal work is complete the edges are laminated, and then screwed down to provide a mechanical bond as well as the chemical bond offered by the bonding paste/laminate.

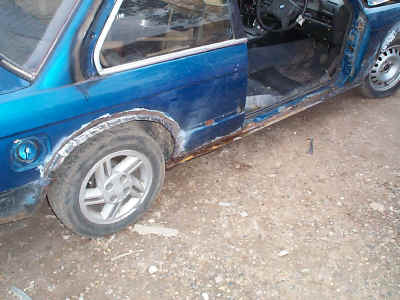

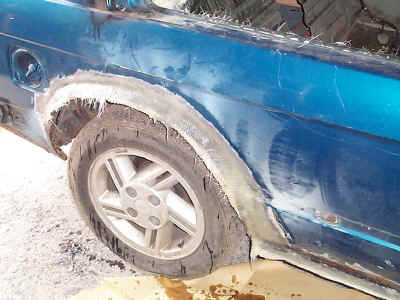

Rear arch reprofiled and welded for big wheels Rear arch laminated

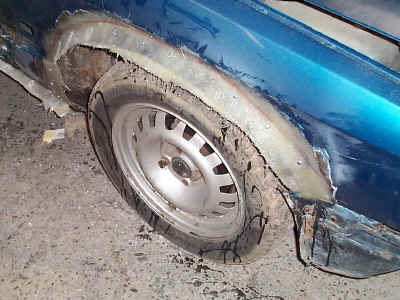

Front arch laminated and secured
